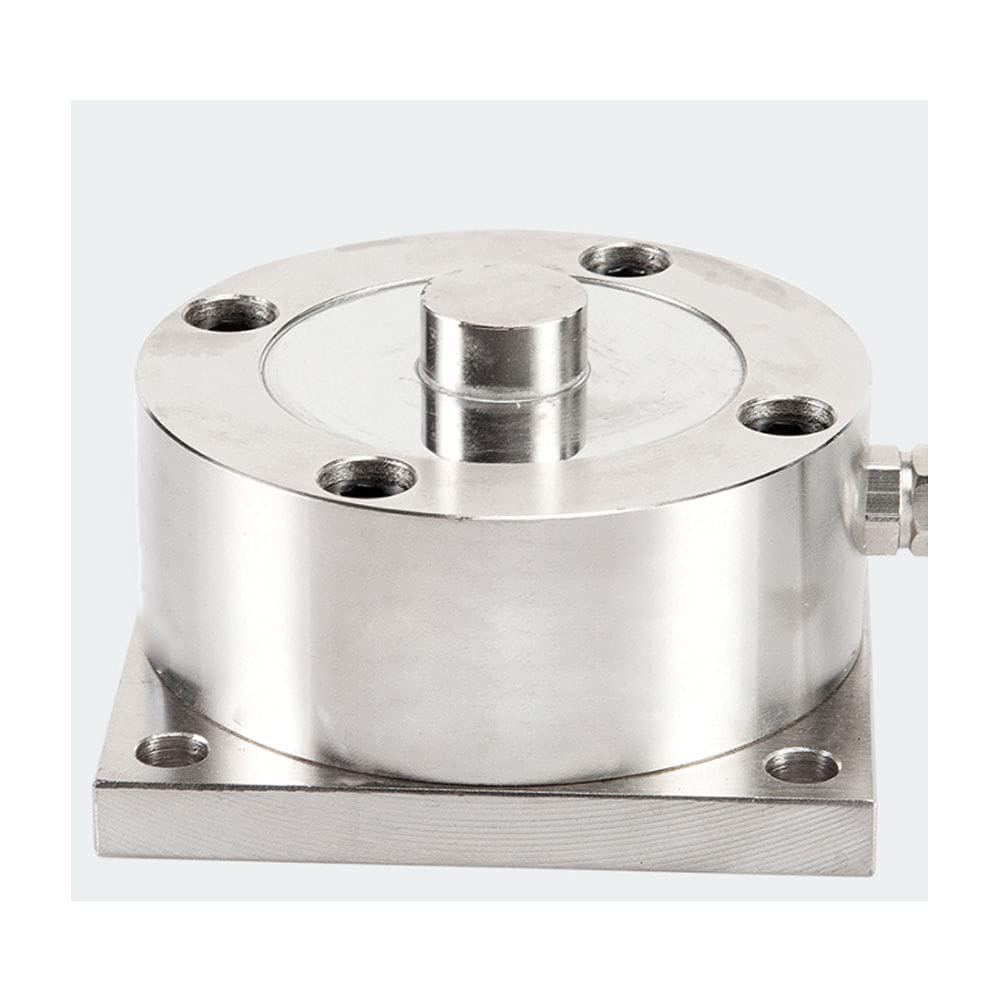

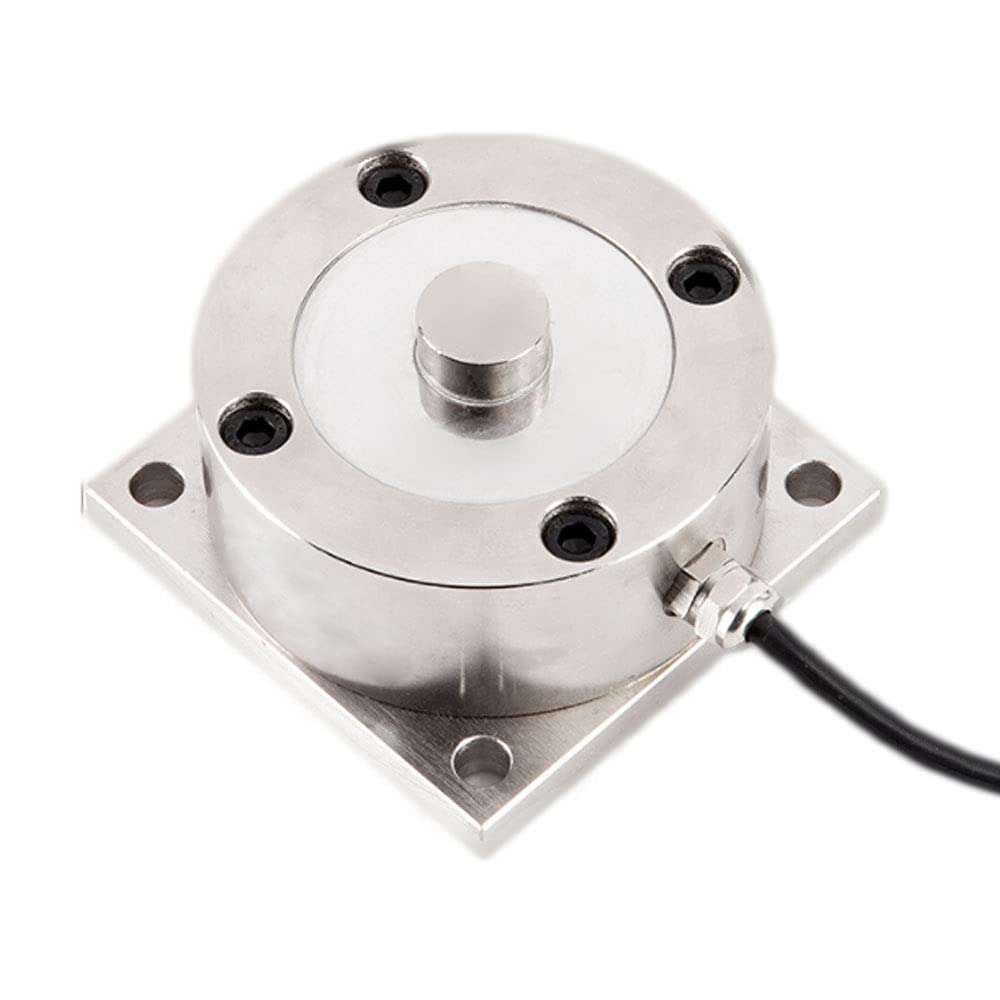

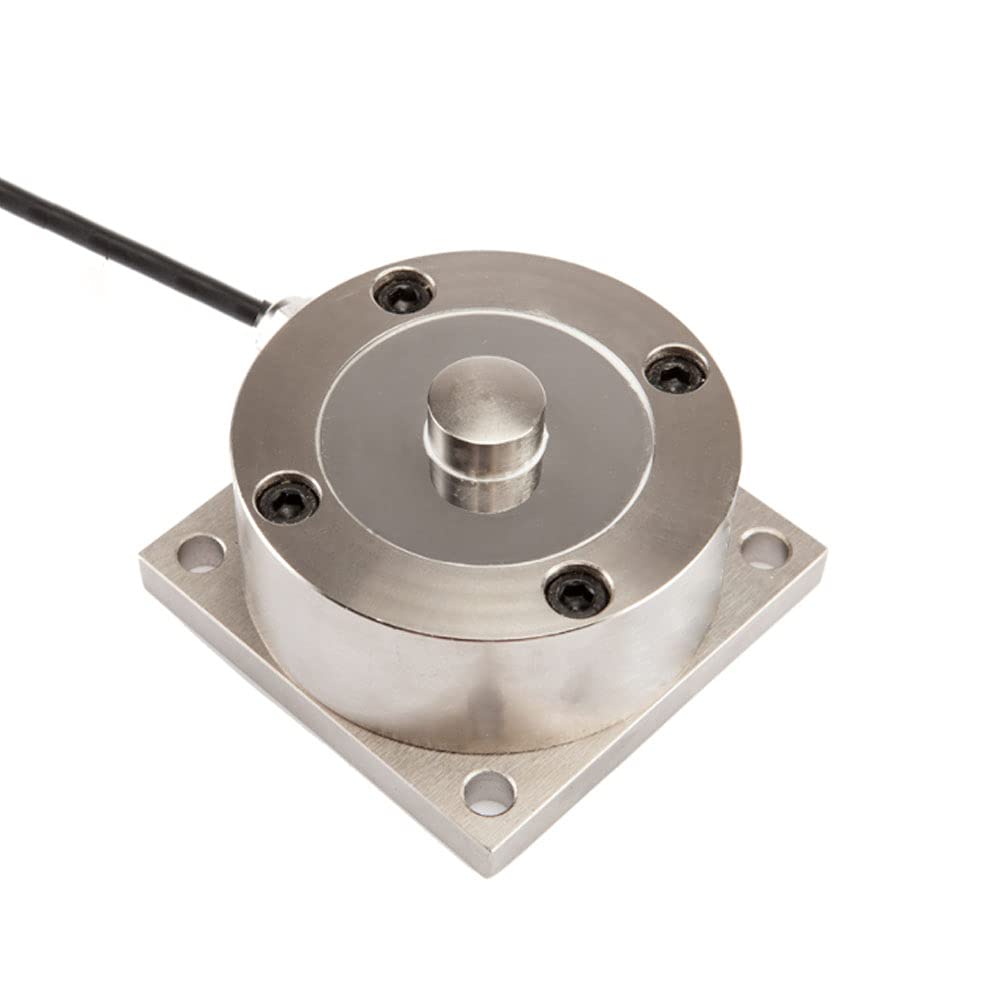

Why Choose ATO Compression Load Cell Sensor? 40Cr alloy steel 40Cr alloy steel, with strong mechanical fatigue resistance, good hardenability, and nickel-plated surface to resist corrosion. Good long-term stability The weight sensors are all subjected to aging test, durable and good quality Wide range of applications ATO compression load cell sensor is widely used in the measurement of force in industrial systems and industrial automation measurement and control systems for various weighing and force measurement such as crane scales, rail scales, and hopper scales. All sealed Low height High precision Good strength Anti-eccentric load Large weighing range Load Cell, 300kg Load Cell, 1000kg Load Cell, 2 ton Load Cell, 30 ton Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.1 out of 5 stars 3 — — — Price $116.10$116.10 $142.10$142.10 $156.10$156.10 $424.70$424.70 Capacity range * 300 kg 1000 kg 2 ton 30 ton Cable length 3m 3m 3m 6m Specification: Model ATO-LCST-TJH-4A Shipping weight 1.5~31kg Capacity range * 300 kg~100 ton Accuracy 0.03%F.S (linearity + hysteresis + repeatability) Sensitivity 2.0±0.1mV/V Creep ±0.03%F.S/30min Zero output ±1%F.S Temperature effect on zero ±0.03%F.S/10℃ Temperature effect on output ±0.03%F.S/10℃ Operating temperature -20℃~+65℃ Input impedance 380±10Ω or 750±15Ω Output impedance 350±3Ω or 700±5Ω Insulation resistance ≥5000MΩ Safety overload 150%F.S Material Alloy steel or stainless steel Protection class IP67 Cable length 3m (＜5 ton), 6m (≥5 ton) Bridge voltage DC 10V Wiring: EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White After purchasing ATO load cell Use with a special digital panel meter to obtain readings directly, or a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.
